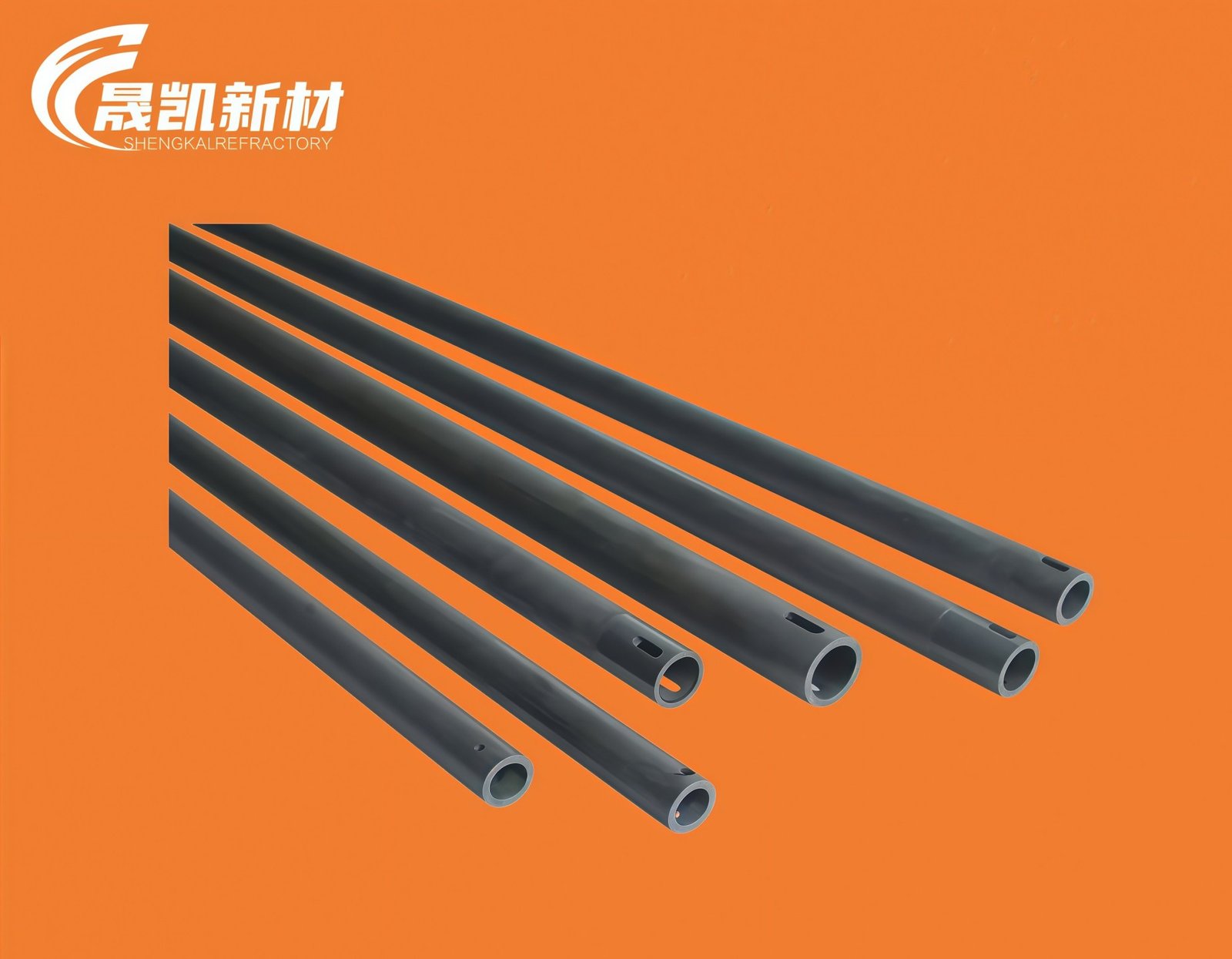

SiSiC Roller: Long Service Life Refractory Roller for Sanitary Ware Firing Kiln
Description
RBSiC (SiSiC) rollers are used for the high-temperature sintering zone of roller hearth kilns.
The application includes kiln furniture for tableware, porcelain, sanitary ware, construction
ceramics, glass, and magnetic materials production etc. RBSiC (SiSiC) Rollers have higher bearing
strength, and there are no deformations even in very high temperatures. The Rollers display more
than 10 times the operational life compared to Alumina Rollers.
Bearing Capacity of RBSiC (SiSiC) Rollers
| Size of Section (mm) | Wall Thickness (mm) | Concentrated Loading (kg·m/L) | Uniformly Distributed Loading (kg·m/L) | |
|---|---|---|---|---|
| B Side | H Side | |||
| 40 | 28 | 6 | 97 | 194 |
| 45 | 33 | 6 | 130 | 260 |
| 45 | 31 | 7 | 141 | 282 |
| 50 | 38 | 6 | 167 | 334 |
| 50 | 36 | 7 | 183 | 366 |
| 55 | 43 | 6 | 209 | 418 |
| 55 | 41 | 7 | 230 | 460 |
| 60 | 48 | 6 | 256 | 512 |
| 60 | 46 | 7 | 283 | 566 |
| 70 | 56 | 7 | 405 | 810 |
SiSiC Roller Dimension Diagram
Figure: Dimensional diagram of SiSiC Roller (B Side, H Side, Wall Thickness)
