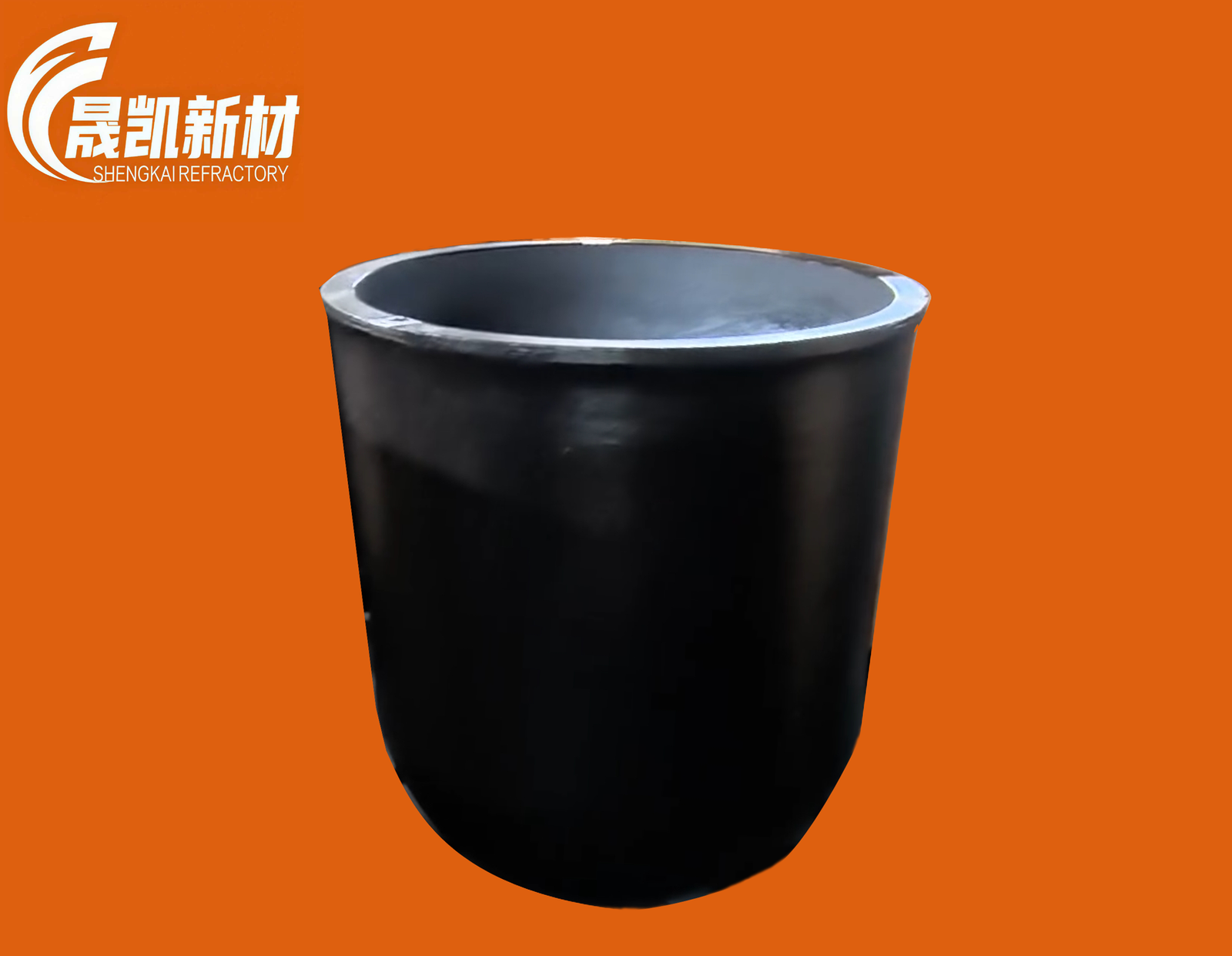

A65 Graphite Silicon Carbide Crucible for Copper Melting

Description

A65 graphite silicon carbide crucible is designed for medium-capacity metal melting applications, especially copper, brass and other non-ferrous alloys. With excellent thermal conductivity, high temperature resistance and good thermal shock performance, this crucible provides stable performance for induction furnaces and gas-fired furnaces.

Technical Data

Item	Specification
Model	A65
Material	Graphite Silicon Carbide
Outer Diameter	260 mm
Height	310 mm
Inner Diameter	212 mm
Inner Bottom Diameter	180 mm
Wall Thickness	25 mm
Capacity	8.5 L
Copper Melting Capacity	50 kg
Application	Copper, Brass, Non-ferrous Metals



Applications:

• Copper melting furnace
• Brass foundry
• Metal recycling plants
• Non-ferrous casting workshops
• Induction furnace and gas-fired furnace applications

Product Features

• High thermal conductivity for efficient heating
• Excellent resistance to thermal shock
• Strong corrosion resistance against molten metals
• Low slag adhesion for easier cleaning
• Long service life under continuous melting conditions
• Suitable for copper and brass melting

Contact SK Matec for customized graphite silicon carbide crucibles according to your furnace type and melting requirements.
