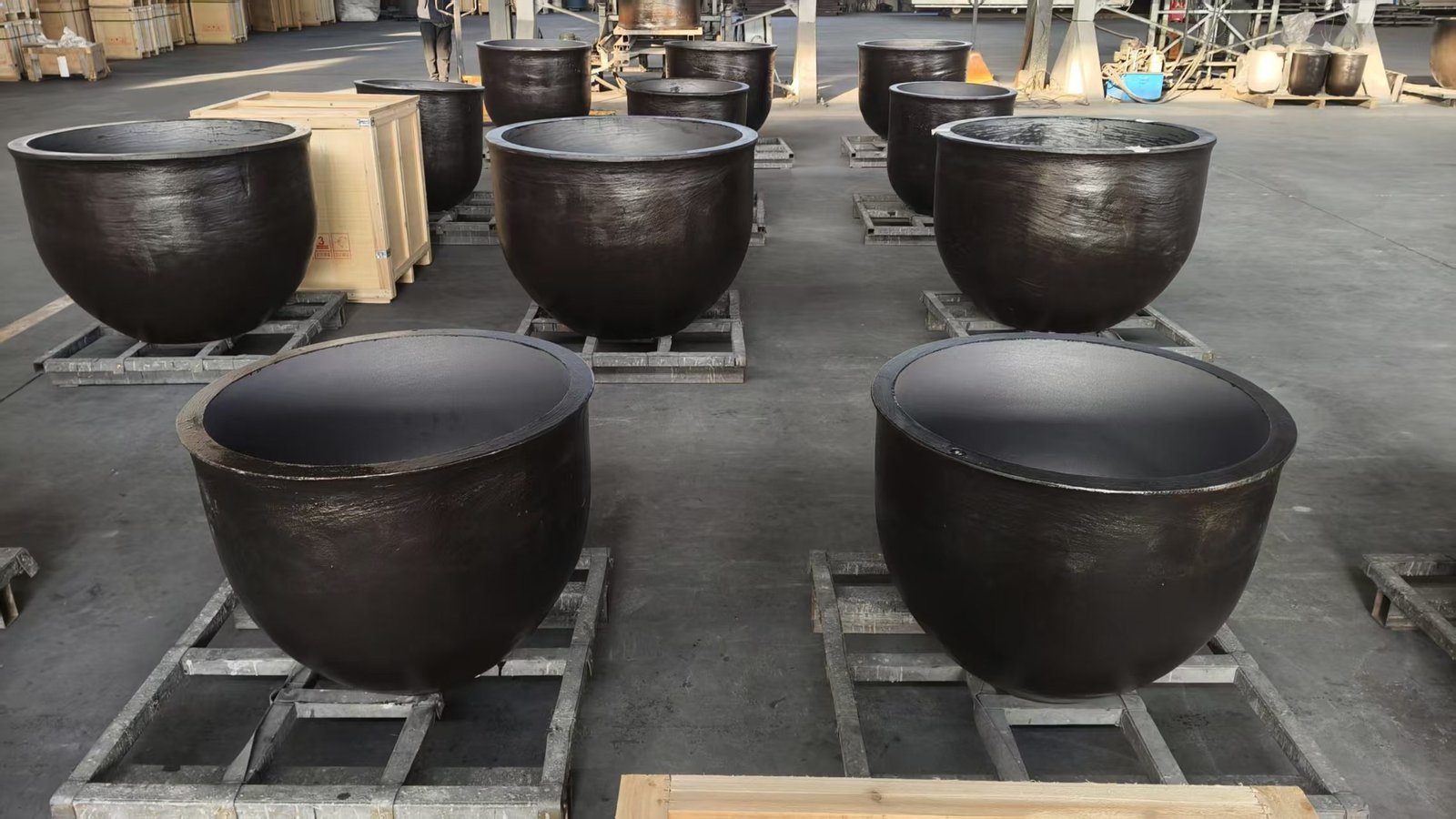

Graphite silicon carbide crucibles are widely used in copper, aluminum, brass, zinc, and precious metal melting because of their excellent thermal conductivity, oxidation resistance, and thermal shock performance.
However, crucible cracking remains one of the most common challenges faced by foundries and metal melting plants. Premature cracking can lead to production downtime, metal leakage, safety risks, and increased operating costs.
This article explains the major causes of graphite silicon carbide crucible cracking and provides practical solutions to maximize crucible service life.
What Causes a Graphite Silicon Carbide Crucible to Crack?
The service life of a graphite silicon carbide crucible depends largely on operating conditions and manufacturing quality. Cracking is usually caused by one or a combination of the following factors:
- Manufacturing defects
- Thermal shock
- Improper charging practices
- Chemical corrosion
- Furnace-related problems
- Moisture contamination
- Mechanical damage
- Natural service-life fatigue
Understanding each factor helps operators significantly reduce crucible failure rates.
Material and Manufacturing Defects
The quality of a graphite silicon carbide crucible begins with raw materials and production processes.
Poor Raw Material Composition
The ratio between graphite and silicon carbide directly affects:
- Thermal conductivity
- Mechanical strength
- Oxidation resistance
- Thermal shock resistance
Low silicon carbide content reduces high-temperature strength, while excessive impurities such as iron oxide and calcium oxide accelerate degradation during melting operations.
Molding and Sintering Defects
Poor manufacturing practices may create:
- Uneven density
- Internal stress points
- Weak bonding structures
- Non-uniform wall thickness
These defects become crack initiation points during repeated heating cycles.
Hidden Microcracks
Low-quality crucibles often contain microscopic cracks that are invisible during inspection but expand rapidly under high temperatures.
Thermal Shock – The Leading Cause of Crucible Cracking
Thermal shock is responsible for a large percentage of graphite silicon carbide crucible failures.
Insufficient Preheating
When a cold crucible is exposed directly to high temperatures, the inner wall expands faster than the outer wall.
This temperature difference creates severe thermal stress that often results in longitudinal cracking.
Excessively Rapid Heating
Heating too quickly can create localized hot spots.
Direct flame impingement on one section of the crucible is particularly harmful.
Improper Cooling
Common mistakes include:
- Placing hot crucibles on wet floors
- Exposing hot crucibles to cold air drafts
- Water contact during handling
Rapid cooling can create transverse cracks and significantly shorten crucible life.
Improper Charging and Melting Practices
Mechanical Impact During Charging
Dropping heavy copper or aluminum ingots into the crucible can create invisible structural damage.
These hidden cracks often develop into major failures after several melting cycles.
Incorrect Metal Loading
Overfilling may cause molten metal overflow and external wall erosion.
Underfilling may expose portions of the crucible to excessive direct flame, causing localized overheating.
Metal Contamination and Chemical Attack
Contaminants such as:
- Moisture
- Oil
- Oxides
- Flux residues
can generate gases during melting and weaken the crucible structure.
Certain reactive metals, especially magnesium-containing alloys, may chemically attack silicon carbide and reduce crucible strength.
Furnace and Environmental Factors
Proper furnace design helps protect the graphite silicon carbide crucible from uneven heating.
Uneven Furnace Temperature
Poor burner performance or aging induction coils can create hot spots inside the furnace.
Localized overheating often causes premature crucible failure.
Improper Crucible Support
An uneven furnace base can create concentrated stress on the crucible bottom.
As temperature increases, these stress points may develop into cracks.
Oxidizing Atmosphere
Excess oxygen accelerates graphite oxidation and reduces the mechanical strength of the crucible.
Moisture Absorption
Moisture trapped inside the crucible expands rapidly when heated.
In severe cases, steam pressure may cause sudden cracking or bursting.
Mechanical Damage During Cleaning
After melting operations, slag and metal residues should be removed carefully.
Avoid:
- Steel hammers
- Sharp metal scrapers
- Aggressive cleaning methods
These tools may create surface scratches that later become crack propagation points.
Service Life Fatigue
Even the highest-quality graphite silicon carbide crucible has a finite lifespan.
Repeated heating and cooling cycles gradually weaken the bond between graphite and silicon carbide.
Depending on operating conditions, most crucibles typically achieve between 50 and 100 melting cycles before replacement becomes necessary.
Choosing the Right Crucible for Copper and Aluminum Melting
Different metals require different crucible designs.
Copper melting typically requires:
- Higher silicon carbide content
- Greater erosion resistance
- Enhanced mechanical strength
Aluminum melting often benefits from:
- Anti-oxidation coatings
- Improved aluminum penetration resistance
- Better thermal efficiency
Selecting the correct graphite silicon carbide crucible significantly reduces cracking risks and improves operational efficiency.
Best Practices to Prevent Crucible Cracking
Follow these recommendations to maximize crucible lifespan:
Proper Preheating Procedure
- Heat slowly to 200°C over approximately 2 hours.
- Raise temperature to 600°C at low power for at least 1.5 hours.
- Increase to 950°C within 30 minutes.
- Hold at 950°C for approximately 1 hour.
- Begin charging only after reaching the recommended temperature.
Additional Preventive Measures
- Use high-quality crucibles from experienced manufacturers.
- Charge metal gently.
- Keep metal volume at 60%-70% capacity.
- Maintain uniform furnace temperature.
- Store crucibles in a dry environment.
- Repair minor cracks promptly.
- Inspect furnace supports regularly.
Conclusion
Cracking of graphite silicon carbide crucibles is rarely caused by a single factor. In most cases, manufacturing quality, thermal shock, improper operation, environmental conditions, and natural wear work together to shorten crucible life.
By selecting a high-quality graphite silicon carbide crucible, following proper preheating procedures, and maintaining correct operating practices, foundries can significantly reduce crucible failures, improve safety, and lower production costs.
If you are looking for high-performance graphite silicon carbide crucibles for copper, aluminum, brass, or zinc melting, contact our technical team for application-specific recommendations.
Choosing the right graphite silicon carbide crucible and following correct operating procedures can significantly extend service life.
FAQ
Why does a graphite silicon carbide crucible crack during first use?
The most common reason is insufficient preheating, which causes severe thermal shock.
How long does a graphite silicon carbide crucible last?
Most crucibles achieve between 50 and 100 melting cycles, depending on melting temperature, metal type, and operating practices.
Can moisture cause crucible cracking?
Yes. Moisture trapped inside the crucible can rapidly turn into steam during heating, generating internal pressure that may cause cracking.
What is the best preheating temperature for a graphite silicon carbide crucible?
Most manufacturers recommend gradually heating to approximately 950°C before normal operation.
